R32 Eco-friendly Energy Saving Residential Swimming Pool Heat Pump
You are here: Home » Products » Other » R32 Eco-friendly Energy Saving Residential Swimming Pool Heat Pump

Product Category

R32 Eco-friendly Energy Saving Residential Swimming Pool Heat Pump

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

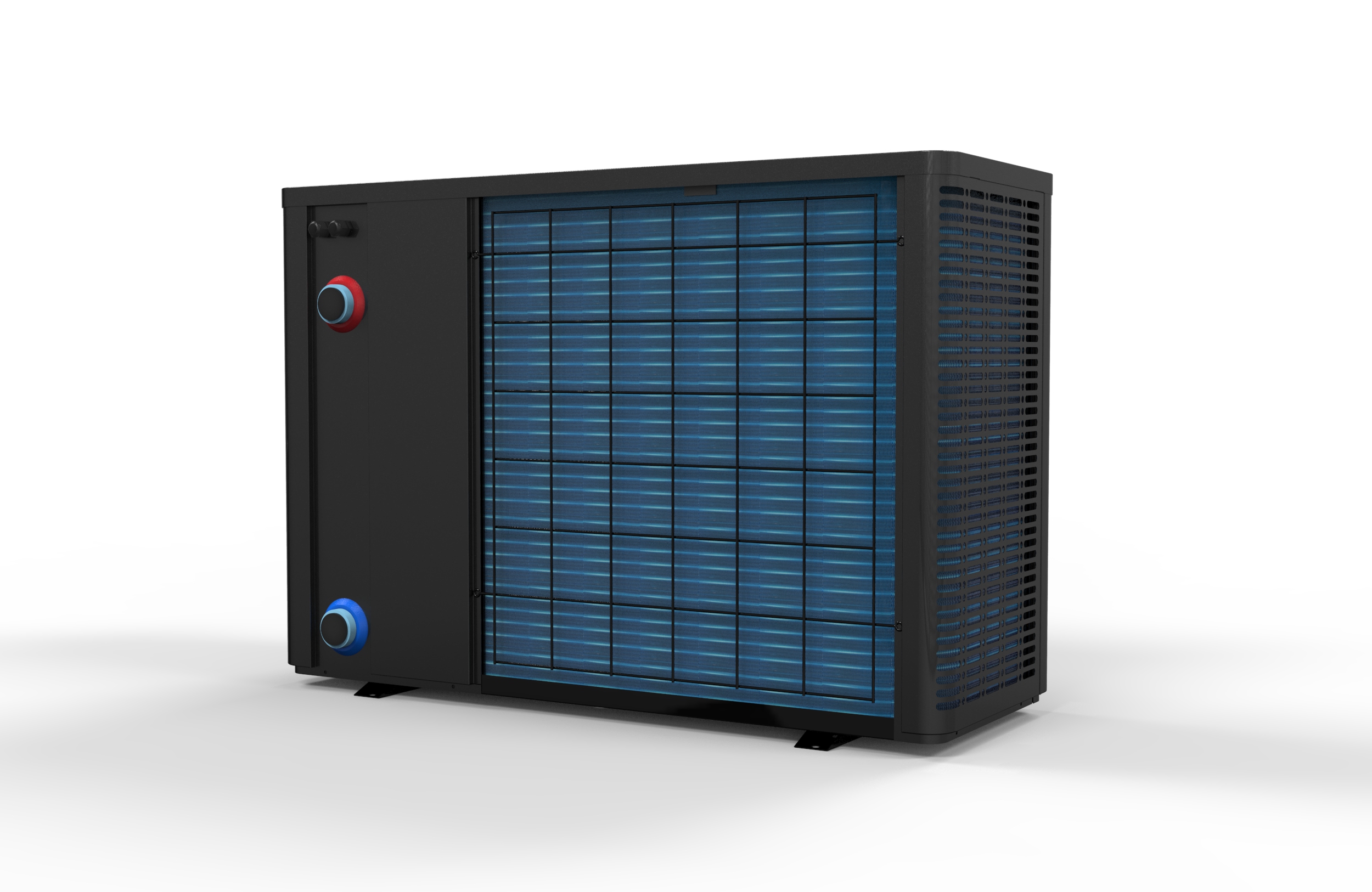

New-R32-pool-heat-pump-On-off-1

Features:




Wide working temperature range-Extend swimming seasons

B3 Extend swimming seasons



R32 New Refrigerant

R32 refrigerant is the latest industry alternative and is expected to replace R410A. It is a hydrofluorocarbon molecule that has several benefits, such as improved energy efficiency, reduced environmental impact, and enhanced safety - all important factors to consider when evaluating refrigerant suitability. As compared to R410A, R32 outperforms in each index. Additionally, because of anticipated restrictions, you may be required to buy R32 anyway.

r32

High Efficient:

As well as being energy efficient and cost-effective, an R32 heat pump offers many other benefits. As a result of its ability to recharge and recycle more efficiently than other refrigerants, it can function at much higher efficiency ratings than other refrigerants.

As a result, your regular energy bills will be lower and your performance won't suffer since this heat pump requires less energy to heat and cool your home. The flow required per unit flow is smaller and the COP is higher since the heat required to evaporate R32 is greater than the heat required to evaporate R410A.

Heat pumps with higher SCOP readings produce more heating capacity per unit of energy used, resulting in higher RHI payments.In the same heat pump system, R32 can be charged less than R410A because of its lower liquid density.

Anti-UV Plastic ABS corrosion resistant casing

Thanks to its Anti-UV Plastic ABS casing that is resistant to corrosion, the ABS cabinet is a perfect solution for those living in coastal areas or regions with humid and rainy weather.

企业微信截图_16823898325968

Built-in WIFI function make your life smarter(optional)

Wifi


CODE WP05WP06WP08WP10WP12WP14WP17M
Advised pool size  (m3)7~148~1610~2014~2817~3420~4025~50
Heating Performance Condition: Air 24ºC, Water 26ºC
Heating Capacity (KW)4.65.37.29.711.614.317
COP5.115.255.335.195.426.035.85
Heating Performance Condition: Air 15ºC, Water 26ºC
Heating Capacity (KW)3.84.15.98.29.111.813.7
COP4.254.434.54.714.715.185.18
Operating Air Temperature ºC-5~43
Power Supply (V/Hz)220-240V/1PH/50HZ
Rated Input Power(KW)0.91.011.351.872.142.372.91
Rated Input Current(A)4.34.86.58.910.211.313.9
Max Heating Current (A)5.368.511.612.614.218.1
Water Flow Rate (m3/h)1.92.43.44.15.467.3
Water Connection ( inch)1-1/21-1/21-1/21-1/21-1/21-1/21-1/2
Sound level at 1m (dB(A))55535252565555
Net Dimension L*W*H(mm)810*293*515810*293*515970*360*5851045*370*6251045*370*6251110*416*7111110*416*711
Qty per 20ft/40HQ(PCS)160/328160/32890/24084/23284/23248/15648/156
Remarks:The Specifications are subject to changes without notice.
CODE WP17WP21WP26WP31
Advised pool size  (m3)25~5530~6035~7045~90
Heating Performance Condition: Air 24ºC, Water 26ºC
Heating Capacity (KW)17.821.225.230.3
COP6.036.266.04
Heating Performance Condition: Air 15ºC, Water 26ºC
Heating Capacity (KW)15.218.121.324
COP5.175.45.135.05
Operating Air Temperature ºC-5~43
Power Supply (V/Hz)380V/3PH/50HZ
Rated Input Power(KW)2.953.424.25.02
Rated Input Current(A)5.36.17.510.2
Max Heating Current (A)6.77.39.113
Water Flow Rate (m3/h)7.3911.213.3
Water Connection ( inch)1-1/21-1/21-1/21-1/2
Sound level at 1m (dB(A))59606060
Net Dimension L*W*H(mm)1110*416*7111110*446*9581110*446*12601110*446*1260
Qty per 20ft/40HQ(PCS)48/15648/9624/4824/48
Remarks:The Specifications are subject to changes without notice.
