V-type asymmetric flow path evaporator, more uniform heat transfer.
Adopt the international brand special compressor with gas injection enthalpy.
-Stable operation under 30℃ ultra-low temperature working condition.
The compressor is equipped with antifreeze electric heating belt, which is conducive to the low temperature start of the compressor.
High precision electronic expansion valve, precise control of refrigerant flow, improve performance.
No master-slave modular design, more free and flexible to expand capacity as needed.
By utilizing 4 ways valve, provide both heating and cooling mode to create more possibility for pool enjoyment.

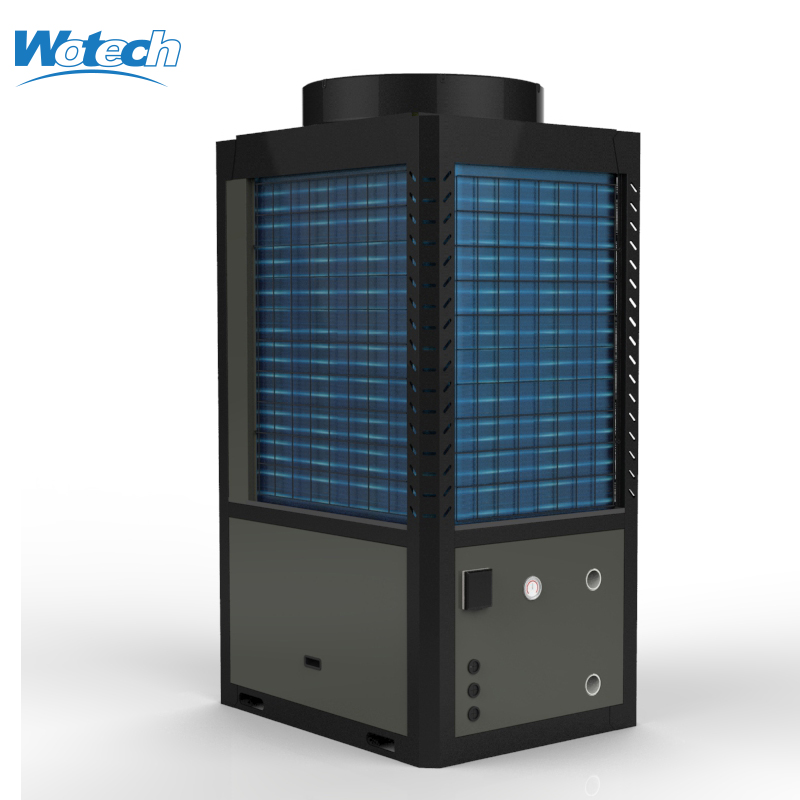

Our commercial air to water heat pump is designed to meet the specific needs of aquatic facilities such as municipalities, hotels, gymnasiums, resorts, schools, and other similar settings.
Utilizing heat generated from the air, this system provides a cheap, eco-friendly, and reliable solution, making it an ideal choice for anyone seeking an energy-efficient and sustainable option.
Compared to traditional electric pool heaters, our system operates more efficiently by utilizing the outside air to regulate the temperature inside the pool, helping to reduce energy costs and the carbon footprint of the facility.
Inverter Technology
The inverter technology in the Wotech heat pump reduces power consumption, which is related to the reduction of room cooling and heating costs. Its use translates to the quiet operation of the unit and faster achievement of the desired temperature
V-type asymmetric flow path evaporator, more uniform heat transfer.
Adopt the international brand special compressor with gas injection enthalpy.
-Stable operation under 30℃ ultra-low temperature working condition.
The compressor is equipped with antifreeze electric heating belt, which is conducive to the low temperature start of the compressor.
High precision electronic expansion valve, precise control of refrigerant flow, improve performance.
No master-slave modular design, more free and flexible to expand capacity as needed.
By utilizing 4 ways valve, provide both heating and cooling mode to create more possibility for pool enjoyment.
Our commercial air to water heat pump is designed to meet the specific needs of aquatic facilities such as municipalities, hotels, gymnasiums, resorts, schools, and other similar settings.
Utilizing heat generated from the air, this system provides a cheap, eco-friendly, and reliable solution, making it an ideal choice for anyone seeking an energy-efficient and sustainable option.
Compared to traditional electric pool heaters, our system operates more efficiently by utilizing the outside air to regulate the temperature inside the pool, helping to reduce energy costs and the carbon footprint of the facility.
Inverter Technology
The inverter technology in the Wotech heat pump reduces power consumption, which is related to the reduction of room cooling and heating costs. Its use translates to the quiet operation of the unit and faster achievement of the desired temperature
CODE | WP135 | WP160 | WP200 |
Advised pool size (m3) | 180~400 | 250~500 | 300~650 |
Heating Performance Condition: Air 24ºC, Water 26ºC | |||
Heating Capacity (KW) | 122 | 152 | 193 |
COP | 5.8 | 6 | 5.8 |
Heating Performance Condition: Air 15ºC, Water 26ºC | |||
Heating Capacity (KW) | 103 | 122 | 163 |
COP | 4.83 | 4.92 | 4.85 |
Operating Air Temperature ºC | -5~43 | ||
Power Supply (V/Hz) | 380V/3PH/50HZ | ||
Rated Input Power(KW) | 21.03 | 25.55 | 33.28 |
Rated Input Current(A) | 37.63 | 45.7 | 59.53 |
Max Heating Current (A) | 48.9 | 59.4 | 77.4 |
Water Flow Rate (m3/h) | 58 | 68.8 | 86 |
Water Connection ( inch) | 3 | φ110 flange | φ110 flange |
Sound level at 1m (dB(A)) | 65 | 70 | 70 |
Net Dimension L*W*H(mm) | 2000*900*2065 | 2600*1280*2350 | 2600*1280*2350 |
Qty per 20ft/40HQ(PCS) | 5/12 | 0/4 | 0/4 |
Remarks:The Specifications are subject to changes without notice |
CODE | WP135 | WP160 | WP200 |
Advised pool size (m3) | 180~400 | 250~500 | 300~650 |
Heating Performance Condition: Air 24ºC, Water 26ºC | |||
Heating Capacity (KW) | 122 | 152 | 193 |
COP | 5.8 | 6 | 5.8 |
Heating Performance Condition: Air 15ºC, Water 26ºC | |||
Heating Capacity (KW) | 103 | 122 | 163 |
COP | 4.83 | 4.92 | 4.85 |
Operating Air Temperature ºC | -5~43 | ||
Power Supply (V/Hz) | 380V/3PH/50HZ | ||
Rated Input Power(KW) | 21.03 | 25.55 | 33.28 |
Rated Input Current(A) | 37.63 | 45.7 | 59.53 |
Max Heating Current (A) | 48.9 | 59.4 | 77.4 |
Water Flow Rate (m3/h) | 58 | 68.8 | 86 |
Water Connection ( inch) | 3 | φ110 flange | φ110 flange |
Sound level at 1m (dB(A)) | 65 | 70 | 70 |
Net Dimension L*W*H(mm) | 2000*900*2065 | 2600*1280*2350 | 2600*1280*2350 |
Qty per 20ft/40HQ(PCS) | 5/12 | 0/4 | 0/4 |
Remarks:The Specifications are subject to changes without notice |
